40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube
Consist of cross-linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Specification:
| Standard color | Clear |
| Tensile Strength | ≥18Mpa |
| Ultimate Elongation | 700% |
| Density | 0.94 g/cm2 |
| Dielectric Strength | 20KV/mm |
| Dielectric Constant | 2.5max |
| Longitudinal Change | ±5% |
Features:
1.1 Working Temperature: -45~ 110℃
1.2 Shrinking temperature range: 120 ℃
1.3 Standard color: Clear
1.4 Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple
Single Fiber(mm):

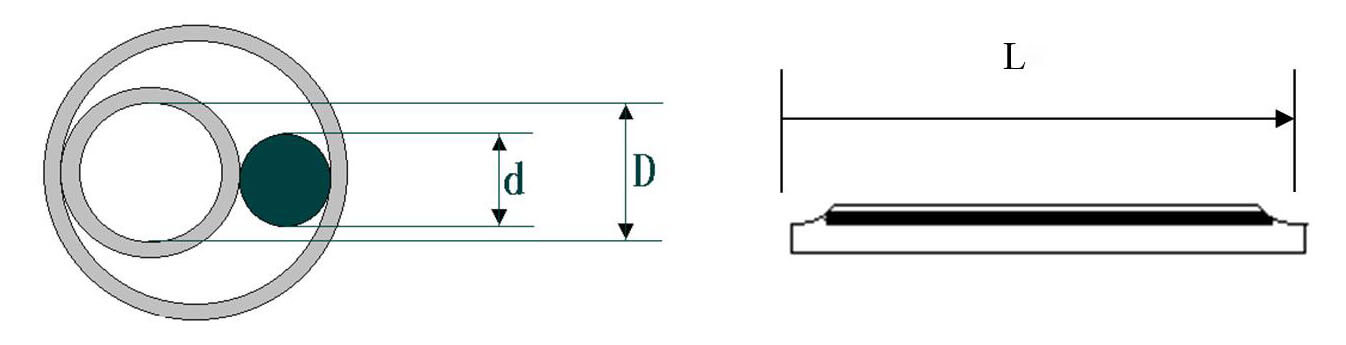

| Model | Splice Protection Sleeves (After Shrinking) | Fusion Tubing | Steel Rod |
| | Outer Diameter (±0.2) | Length (±1) | Inner Diameter (±0.1) | Length (±1) | Outer Diameter (±0.1) | Length (±1) |
| DWFP-H-61x1.5x3.0 | 3.0 | 61 | 1.5 | 61 | 1.5 | 55 |
| DWFP-H-45x1.5x3.0 | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 |
| DWFP-H-40x1.5x3.0 | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 |
| DWFP-H-25x1.5x3.0 | 3.0 | 25 | 1.5 | 25 | 1.5 | 20 |
| DWFP-H-61x1.2x2.6 | 2.6 | 61 | 1.5 | 61 | 1.2 | 55 |
| DWFP-H-45x1.2x2.6 | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 |
| DWFP-H-40x1.2x2.6 | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 |
| DWFP-H-25x1.2x2.6 | 2.6 | 25 | 1.5 | 25 | 1.2 | 20 |
| DWFP-H-61x1.0x2.4 | 2.4 | 61 | 1.5 | 61 | 1.0 | 55 |
| DWFP-H-45x1.0x2.4 | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 |
| DWFP-H-40x1.0x2.4 | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 |
| DWFP-H-25x1.0x2.4 | 2.4 | 25 | 1.5 | 25 | 1.0 | 20 |
| DWFP-H-40x0.8x2.2 | 2.2 | 40 | 1.5 | 40 | 0.8 | 40 |
| DWFP-H-25x0.8x2.2 | 2.2 | 25 | 1.5 | 25 | 0.8 | 25 |
| DWFP-H-18x0.8x2.2 | 2.2 | 18 | 1.5 | 18 | 0.8 | 18 |
| DWFP-H-40x0.5x1.3 | 1.3 | 40 | 0.35 | 40 | 0.5 | 40 |
| DWFP-H-25x0.5x1.3 | 1.3 | 25 | 0.35 | 25 | 0.5 | 25 |
| DWFP-H-18x0.5x1.3 | 1.3 | 18 | 0.35 | 18 | 0.5 | 18 |
| DWFP-E-61x1.5x3.0 | 3.0 | 61 | 1.5 | 61 | 1.5 | 55 |
| DWFP-E-45x1.5x3.0 | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 |
| DWFP-E-40x1.5x3.0 | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 |
| DWFP-E-25x1.5x3.0 | 3.0 | 25 | 1.5 | 25 | 1.5 | 20 |
| DWFP-E-61x1.2x2.6 | 2.6 | 61 | 1.5 | 61 | 1.2 | 55 |
| DWFP-E-45x1.2x2.6 | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 |
| DWFP-E-40x1.2x2.6 | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 |
| DWFP-E-25x1.2x2.6 | 2.6 | 25 | 1.5 | 25 | 1.2 | 20 |
| DWFP-E-61x1.0x2.4 | 2.4 | 61 | 1.5 | 61 | 1.0 | 55 |
| DWFP-E-45x1.0x2.4 | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 |
| DWFP-E-40x1.0x2.4 | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 |
| DWFP-E-25x1.0x2.4 | 2.4 | 25 | 1.5 | 23 | 1.0 | 20 |
| DWFP-E-40x0.8x2.2 | 2.2 | 40 | 1.5 | 40 | 0.8 | 40 |
| DWFP-E-25x0.8x2.2 | 2.2 | 25 | 1.5 | 25 | 0.8 | 25 |
| DWFP-E-18x0.8x2.2 | 2.2 | 18 | 1.5 | 18 | 0.8 | 18 |
Notes: DWFP-H: High quality level (same as Tyco SMOUV)
DWFP-E: Economical Quality Level
|
|

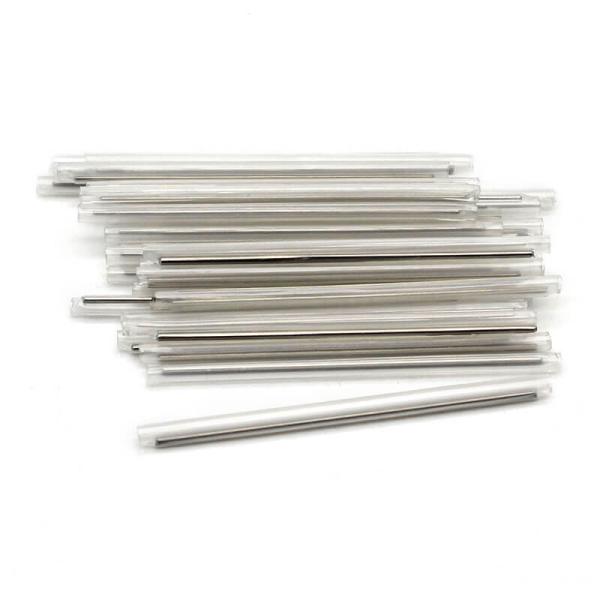

40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube Images
|
