Huawei Compatible Mini SC Waterproof Field Assembly FTTH connector For FTTH Drop Cable And Round Cable

Brand Name : DOWELL

Model Number : DW-HWF-SC

MOQ : 500 pieces

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500 PCS Per 7 Days

Delivery Time : 7 - 15 Days

Place of Origin : China

Operating temperature : −40℃ to +50℃

Durability : min 1000 cycles

Assemblity : glue and polish

Connection : physical contact

Waterproof level : IP68

Application : FTTX System

Contact Now

Huawei Compatible Mini SC Waterproof connector SC For FTTH drop cable And Round Cable

Mini Sc connector provides quick installation solutions and has good performance on mating receptacle / Adapter. Field assembly optical reinforced adapter provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.

Specification:

Parameter Specification
Waterproof Rating IP68 (1M, 1 hour)
Cable Compatibility 2.0×3.0 mm, 3.0 mm, 5.0 mm
Insertion Loss ≤0.50dB
Return Loss ≥55dB
Mechanical Durability 1000 cycles
Cable Tension 2.0×3.0 mm, 3.0 mm: ≥30N; 5.0 mm: ≥70N
Drop Performance Survives 10 drops from 1.5 m
Connector Type SC/APC
Ferrule Material Full ceramic zirconia

Fearure:

1.1 Cable diameter Range:FTTH Drop cable 2.0*1.6mm/ 2.0*3.0mm/2.0*5.0mm ,Round cable 5.0mm/3.0mm/2.0mm.

1.2 IP68 water, dust proof and corrosion resistant

1.3 Low insertion loss and added loss.

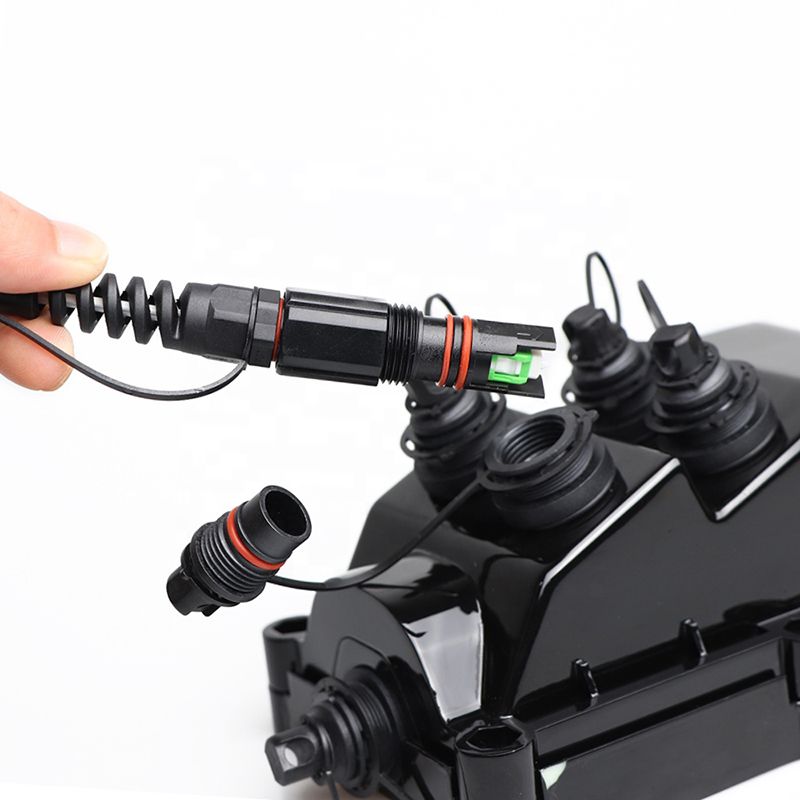

Huawei Compatible Mini SC Waterproof Field Assembly FTTH connector For FTTH Drop Cable And Round Cable

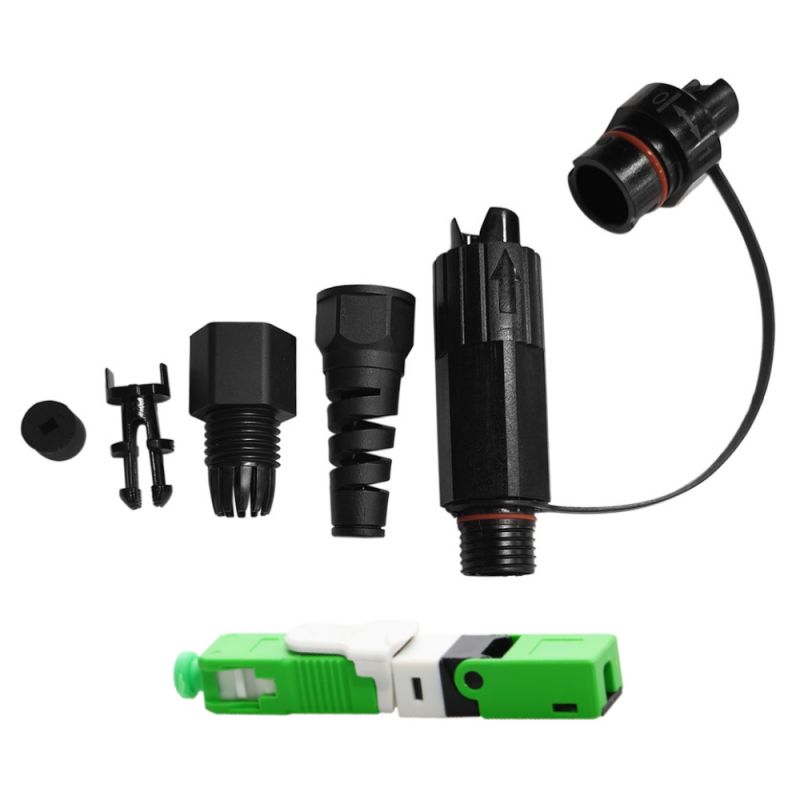

Huawei Compatible Mini SC Waterproof Field Assembly FTTH connector For FTTH Drop Cable And Round Cable

Application:

2.1 FTTA BBU RRU
2.2 Harsh Environment
2.3 Data Video Transmission
2.4 FTTH & Outdoor Fiber Terminal End
2.5 Optical Fiber Access Of Mobile Base Station
2.6 Telecom networks 5G tower;
2.7 CATV, LAN&WAN.
2.8 Broadband;
2.9 CPRI, FTTP, FTTA

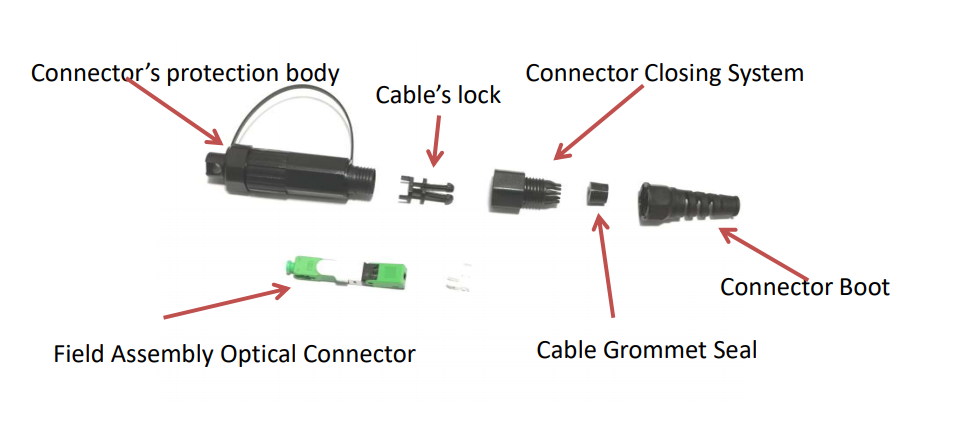

Huawei Compatible Mini SC Waterproof Field Assembly FTTH connector For FTTH Drop Cable And Round Cable
