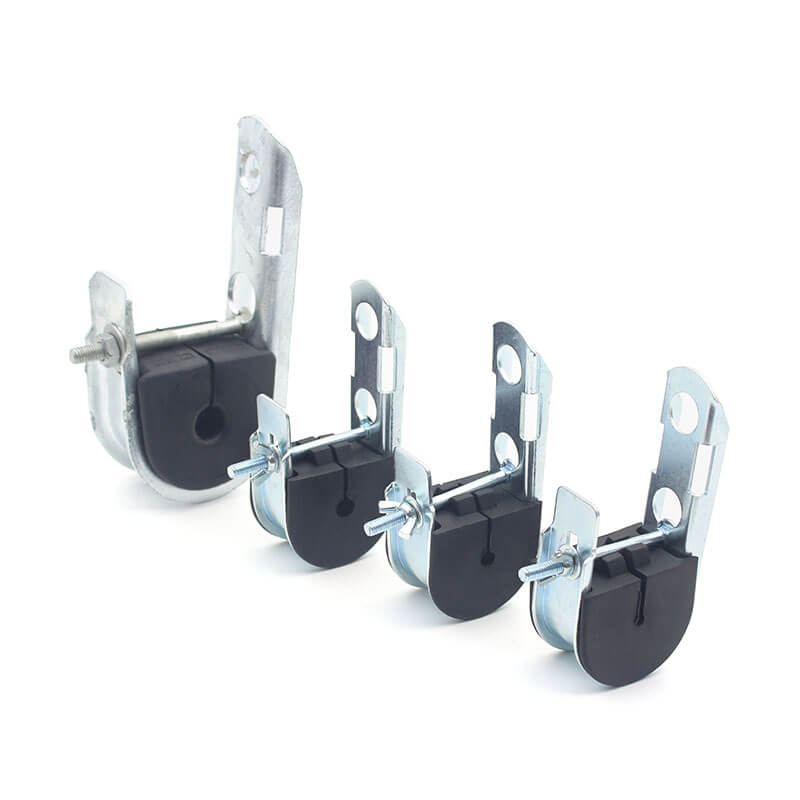

FTTH Adjustable Carbon Steel Suspension Clamp Hook 12-20MM J Hook

Name: FTTH Adjustable Carbon Steel Suspension Clamp Hook 1220MM J Hook
Brand: DOWELL
Price: 1 USD

Quality FTTH Adjustable Carbon Steel Suspension Clamp Hook 12-20MM J Hook wholesale

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : DW-1095-2

Packaging Details : Normal Package

Supply Ability : 10000 PCS Per 7 Days

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Material : hot dip galvanised steelg

Breaking load : 5000N

Weight : 0.8kg

Packing : 20 pcs/carton

Contact Now

FTTH Adjustable Carbon Steel Suspension Clamp Hook 12-20MM J Hook

The suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø 5.0 to 20.0 mm on short spans (max 100m) at intermediate poles on straight routes. No special tools needed.

Specification

Part Number	Cable diameter(mm)	Break Load(KN)
DW-1095-1	5-8	4
DW-1095-2	8-12	4
DW-1095-3	10-15	4
DW-1095-4	12-20	4

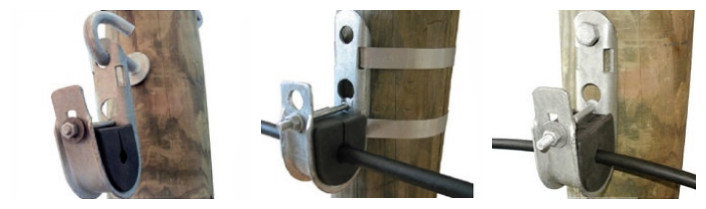

Application

1. The clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

2. The clamp can be installed on wood poles, round concrete poles and polygonal metallic poles using one or two 20mm pole bands and two buckles.

3. The clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.

FTTH Adjustable Carbon Steel Suspension Clamp Hook 12-20MM J Hook

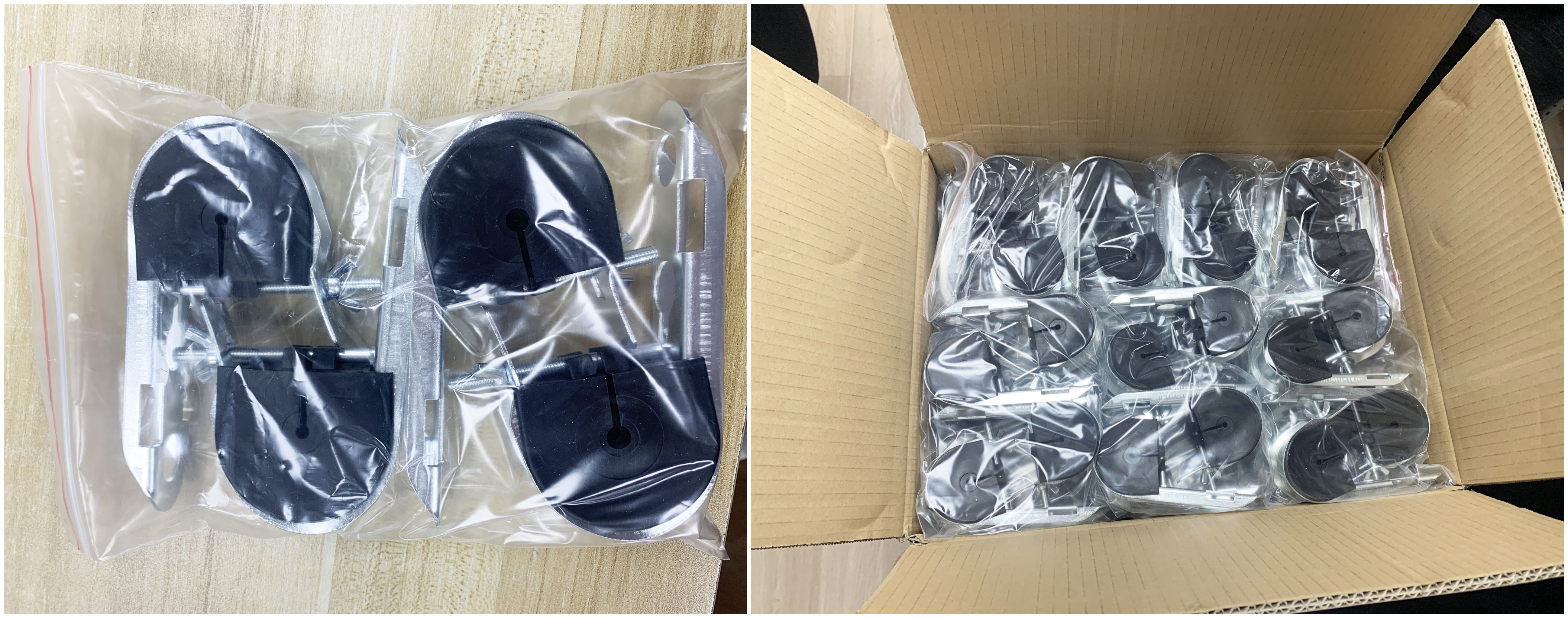

Our Package

Production Flow

More Sizes

FTTH Adjustable Carbon Steel Suspension Clamp Hook 12-20MM J Hook Images
